RECESSED

200 Series / LED

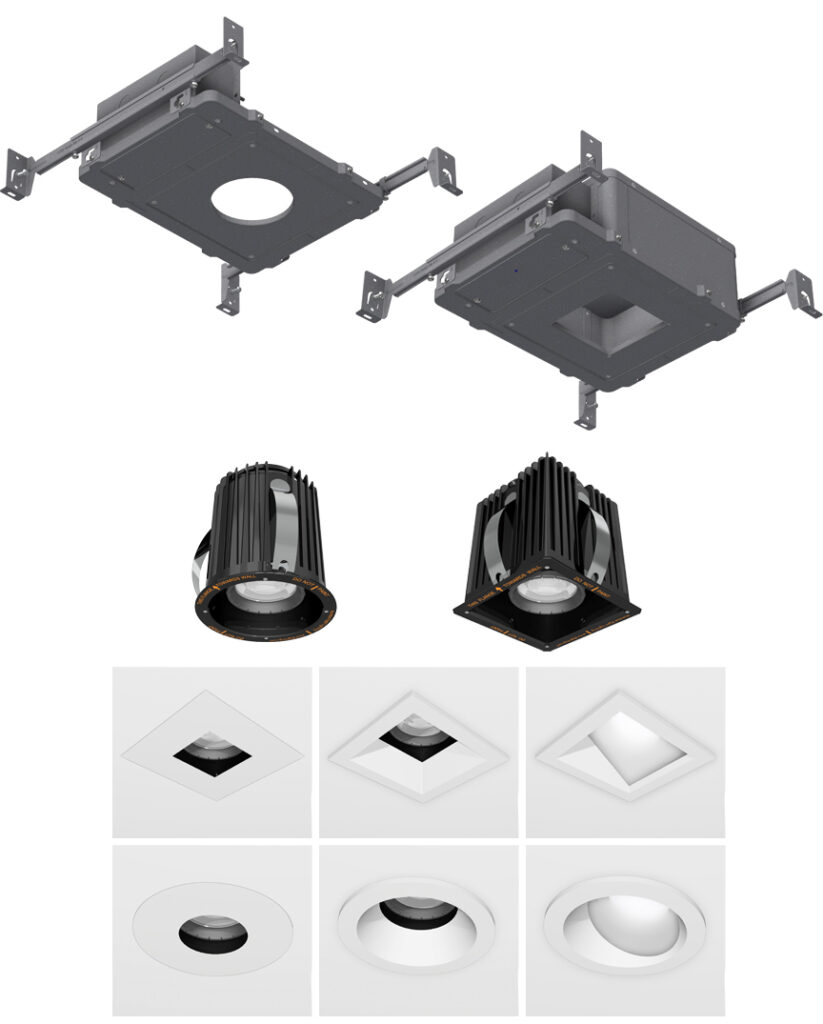

The 200 Series recessed LED downlight delivers performance, flexibility, and value. Available options include: Fixed, Adjustable, and Wall Wash. Architectural quality trims feature minimal 1-7/8”, 2-1/4”, and 2-3/4apertures. Multiple color temperature, optic, and driver options provide ultimate flexibility. New construction housing options include: 4” high Type Non-IC and 5-1/2” high Type IC-CP.
200-OpenStairway800x580
PRODUCT QUESTIONS?
We are here to help.
Customer Service:
(707) 794-0888

201 / LED

FIXED POSITION

NEW CONSTRUCTION

NON-IC / IC-CP HOUSINGS

SPECIFY PRODUCT
  • Fixed position downlight delivers up to 1265 lumens at 14W
  • 2700°K, 3000°K, 3500°K, and 4000°K 92+ CRI Static White
  • 3000°K – 1800°K 97+ CRI Warm Dimming
  • Available beamspreads: 15°, 25°, 40°, and 60°
  • Multiple dimming driver options
  • Round and Square flanged Flat and Bevel trims
  • Minimal 1-7/8″ and 2-1/4″ apertures
  • Type Non-IC Housing: 11-3/4″L x 8-5/8″W x 4″H
  • Type IC-CP Housing: 11-3/4″L x 8-5/8″W x 5-1/2″H

202 / LED

ADJUSTABLE

NEW CONSTRUCTION

NON-IC / IC-CP HOUSINGS

SPECIFY PRODUCT
  • Adjustable downlight delivers up to 1230 lumens at 14W
  • 0-30° vertical and 370° horizontal tool-free adjustment
  • 2700°K, 3000°K, 3500°K, and 4000°K 92+ CRI Static White
  • 3000°K – 1800°K 97+ CRI Warm Dimming
  • Available beamspreads: 15°, 25°, 40°, and 60°
  • Multiple dimming driver options
  • Round and Square flanged Flat and Bevel trims
  • Minimal 1-7/8″ and 2-1/4″ apertures
  • Type Non-IC Housing: 11-3/4″L x 8-5/8″W x 4″H
  • Type IC-CP Housing: 11-3/4″L x 8-5/8″W x 5-1/2″H

203 / LED

WALL WASH

NEW CONSTRUCTION

NON-IC / IC-CP HOUSINGS

SPECIFY PRODUCT
  • Wall wash downlight delivers up to 1060 lumens at 14W
  • 2700°K, 3000°K, 3500°K, and 4000°K 92+ CRI Static White
  • 3000°K – 1800°K 97+ CRI Warm Dimming
  • Multiple dimming driver options
  • Round and Square flanged trims
  • Minimal 2-3/4″ angle-cut aperture
  • Type Non-IC Housing: 11-3/4″L x 8-5/8″W x 4″H
  • Type IC-CP Housing: 11-3/4″L x 8-5/8″W x 5-1/2″H
